Case Washer Double Lane

Case Washer Double

For maximum throughput, double lane case washers can clean up to 120 cases per minute. Available in 2 or 3 stages and constructed of stainless steel, the ITS case washer offer durability, space saving design and maximum efficiency.

Maximize output with the ITS double lane case washer. Choose from 4 models that clean up to 120 cases per minute.
Jeff, Mechanical EngineerInternational Thermal Systems

Overview

International Thermal Systems offers four convenient standard double-lane case washer models.

Model DW60 Single Strand Chain Track (each product lane) Case Washer features a 2-stage product process treatment designed to clean 30 cases per minute in each product lane for a total of 60 cases per minute. The first stage is a wash stage that uses hot, high volume, high-pressure wash solution to remove stubborn dirt and debris from the cases. In addition to the wash stage, a final rinse stage is included on this model. Fresh ambient rinse water is applied at low-pressure to rinse the cases free of chemicals before they exit the washer.

Model DW80 Single Strand Chain Track (each product lane) Case Washer features a 2-stage product process treatment designed to clean 40 cases per minute in each product lane for a total of 80 cases per minute. The first stage is a wash stage that uses hot, high volume, high-pressure wash solution to remove stubborn dirt and debris from the cases. In addition to the wash stage, a final rinse stage is included on this model. Fresh ambient rinse water is applied at low-pressure to rinse the cases free of chemicals before they exit the washer.

 Model DW100 Single Strand Chain Track (each product lane) Case Washer features a 3-stage product process treatment designed to clean 50 cases per minute in each product lane for a total of 100 cases per minute. The first and second wash stages use hot, high volume, high-pressure wash solution to perform the initial and final cleaning of the cases. In addition to the two wash stages, a final rinse stage is included on this model. Fresh ambient rinse water is applied at low-pressure to rinse the cases free of chemicals before they exit the washer.

Model DW120 Single Strand Chain Track (each product lane) Case Washer features a 3-stage product process treatment designed to clean 60 cases per minute in each product lane for a total of 120 cases per minute. The first and second wash stages use hot, high volume, high-pressure wash solution to perform the initial and final cleaning of the cases. In addition to the two wash stages, a final rinse stage is included on this model. Fresh ambient rinse water is applied at low-pressure to rinse the cases free of chemicals before they exit the washer.

Click to learn about our Single Lane Case Washers.

Features

Case Washer Features include:

  • Rugged 1/8in (3.17mm) thick stainless steel tank and housing
  • Built-in shipping skids and jack screws for easy leveling
  • Bottom sloped 2in (50.8mm) for complete drainage and 2.5in (63.50mm) drain valves

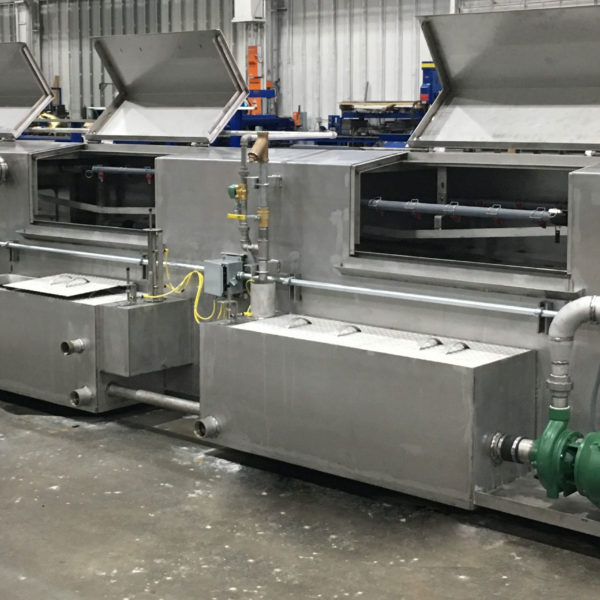

  • Large, gull-wing access doors for top and side access
  • Marine clean-out doors with easy 4-bolt access and one piece molded gaskets
  • Stainless steel screens
  • Exhaust outlets with dampers on each end for exhausting vapors
  • Quick disconnect couplers and caps on all spray pipes
  • Clip-on type nozzles with stainless steel orifice
  • Bottom support and top hold down rails for wheel drive application or chain tracks with replaceable wear strips for conveyor application
  • Chain tracks feature enclosed return tubes, with machined wear strips that prevent chain twist
  • Spray piping designed with cleanout ports and flanges
  • Temperature regulator, strainer, thermometer and steam injectors in the wash tank
  • Pre-wired NEMA 4X control panel with Allen Bradley components
  • Low-level protection and fault indication for all pumps and tanks
  • An Automatic level control in the wash tank uses the rinse tank water to conserve chemicals. Rinse water already contains some cleaner chemical.
  • Fresh water metering controls with automatic shut-off in the rinse tank
  • Pressure gauges (Glycerine filled) with siphons to prevent clogging.

Specifications

Typical Case Washer Configurations

  • Multiple Stage Configurations

Power Sources

  • Main Power Supplies 208 to 690 Volt AC, 50 and 60 HZ
  • Control Voltage 24 Volt DC or 120 or 220 Volt AC

Heat Sources

  • Electric, LPG, Natural Gas, Steam

Belt Options

  • Belts: Flat Wire, Balanced Weave, Mesh and plastic
  • Zig-Zag Guide Rails

Construction Specifications

  • Stainless Steel 304, 316
Single Lane Case Washer

Options

  • Self-contained conveyor and drive system
  • Self-contained powered-wheel drive system to push cases through the washer system
  • Self-contained exhaust system
  • Self-contained powered blow-off module
  • Additional sanitizing spray zone
  • Stainless steel pumps
  • In-line filtration system
  • City water rinse directly to drain (non-recirculating)
  • Solution heat options consisting of steam coil and trap, natural gas or electric
  • Separate floor mounted solution tanks for mezzanine installation of the washer
  • PLC and HMI control options available

Industries

  • Dairy
  • Food & Beverage
