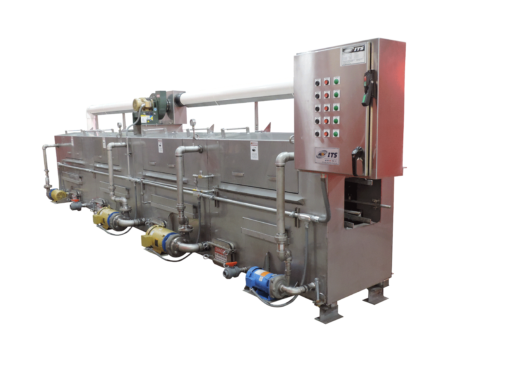

Case Washer Single Lane

ITS Case Washers are designed for cleaning dairy and beverage cases and tote boxes. Constructed of stainless steel with multiple stage configurations, the ITS case washers offer many features that provide superior cleaning for any application.

Large capacity solution tanks have sloped bottoms for easy discharge for cleaning. Our case washers can be sized to wash 20 to 120 cases per minute. Contact us to determine the best washer for your application.
Eric, Sales ManagerInternational Thermal Systems

Case Washer Single Lane Overview

International Thermal Systems offers five standard single-lane case washer models.

No matter what the product throughput is required for the application, ITS designs case washers with output from 20 to 120 cases per minute.

Case Washer Single Lane
Case Washers for Beverage Crates from ITS

Model SW20 Single Strand Chain Track Case Washer features a 2-stage product process treatment designed to clean 20 cases per minute. The first stage is a wash stage that uses hot, high volume, high-pressure wash solution to remove stubborn dirt and debris from the cases. In addition to the wash stage, a final rinse stage is included on this model. Fresh ambient rinse water is applied at low-pressure to rinse the cases free of chemicals before they exit the washer.

Model SW30 Single Strand Chain Track Case Washer features a 2-stage product process treatment designed to clean 30 cases per minute. The first stage is a wash stage that uses hot, high volume, high-pressure wash solution to remove stubborn dirt and debris from the cases. In addition to the wash stage, a final rinse stage is included on this model. Fresh ambient rinse water is applied at low-pressure to rinse the cases free of chemicals before they exit the washer

Model SW40 Push-Thru Track Case Washer features a 3-stage product process treatment designed to clean 40 cases per minute. The first stage consists of a pre-wash stage using a large volume of hot, low-pressure wash solution circulating over the cases to remove loose soils and soften more difficult soils. The second wash stage uses hot, high volume, high-pressure wash solution to remove stubborn dirt and debris from the cases. In addition to the two wash stages, a final rinse stage is included on this model. Fresh ambient rinse water is applied at low-pressure to rinse the cases free of chemicals before they exit the washer.

Model SW50 Push-Thru Track Case Washer features a 4-stage product process treatment designed to clean 50 cases per minute. The first stage consists of a pre-wash stage using a large volume of hot, low-pressure wash solution circulating over the cases to remove loose soils and soften more difficult soils. The second and third wash stages use hot, high volume, high-pressure wash solution to perform the additional final cleaning of the cases. In addition to the three wash stages, a final rinse stage is included on this model. Fresh ambient rinse water is applied at low-pressure to rinse the cases free of chemicals before they exit the washer.

Model SW60 Push-Thru Track Case Washer features a 3-stage product process treatment designed to clean 60 cases per minute. The first stage consists of a pre-wash stage using a large volume of hot, low-pressure wash solution circulating over the cases to remove loose soils and soften more difficult soils. The second wash stage uses hot, high volume, high-pressure wash solution to perform the final cleaning of the cases. In addition to the two wash stages, a final rinse stage is included on this model. Fresh ambient rinse water is applied at low-pressure to rinse the cases free of chemicals before they exit the washer.

click to learn about our Double Lane case washers.

Case Washer Single Lane

Features

Case Washer Features include:

  • Rugged 1/8in (3.17mm) thick stainless steel tank and housing
  • Built-in shipping skids and jack screws for easy leveling
  • Bottom sloped 2in (50.8mm) for complete drainage and 2.5in (63.50mm) drain valves
  • Large, gull-wing access doors for top and side access
  • Marine clean-out doors with easy 4-bolt access and one piece molded gaskets
  • Stainless steel screens
  • Exhaust outlets with dampers on each end for exhausting vapors
  • Quick disconnect couplers and caps on all spray pipes
  • Clip-on type nozzles with stainless steel orifice
  • Bottom support and top hold down rails for wheel drive application or chain tracks with replaceable wear strips for conveyor application
  • Chain tracks feature enclosed return tubes, with machined wear strips that prevent chain twist
  • Spray piping designed with cleanout ports and flanges
  • Temperature regulator, strainer, thermometer and steam injectors in the wash tank
  • Pre-wired NEMA 4X control panel with Allen Bradley components
  • Low-level protection and fault indication for all pumps and tanks
  • An Automatic level control in the wash tank uses the rinse tank water to conserve chemicals. Rinse water already contains some cleaner chemical.
  • Fresh water metering controls with automatic shut-off in the rinse tank
  • Pressure gauges (Glycerine filled) with siphons to prevent clogging.

Specifications

Typical Case Washer Configurations

  • Multiple Stage Configurations

Power Sources

  • Main Power Supplies 208 to 690 Volt AC, 50 and 60 HZ
  • Control Voltage 24 Volt DC or 120 or 220 Volt AC

Heat Sources

  • Electric, LPG, Natural Gas, Steam

Belt Options

  • Belts: Flat Wire, Balanced Weave, Mesh and plastic
  • Zig-Zag Guide Rails

Construction Specifications

  • Stainless Steel 304, 316

Options

Options

  • Self-contained conveyor and drive system
  • Self-contained powered-wheel drive system to push cases through the washer system
  • Self-contained exhaust system
  • Self-contained powered blow-off module
  • Additional sanitizing spray zone
  • Stainless steel pumps
  • In-line filtration system
  • City water rinse directly to drain (non-recirculating)
  • Solution heat options consisting of steam coil and trap, natural gas or electric
  • Separate floor mounted solution tanks for mezzanine installation of the washer
  • PLC and HMI control options available

Industries

  • Dairy
  • Food & Beverage
