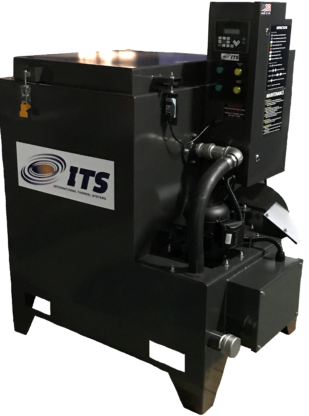

Cabinet Washer – Top Loading

The top load wash system is designed with a hinged horizontally opening lid allowing the operator to lower parts into the cleaning cabinet.  Parts are place stationary inside the process basket while a rotating nozzle assembly delivers highly aggressive spray at 360° to the work.  Process time is variable allowing cleaning cycle adjustment for multiple requirements.  The top load cabinet washer is a perfect fit for small batch production and repair type work cells with tough cleaning requirements.

Overview

Cabinet washers are most commonly used for cleaning a wide variety of part types and sizes in a single compartment.  They are typically manually loaded and unloaded and are an ideal for washing medium to large size parts with a low production requirement.  These washers can be featured with multiple stages and cycle times are variable to meet the needs of the application.  Cabinet washers are best suited for washing parts such as welded assemblies, machine components, engine blocks, engine heads, transmissions and other parts with unique geometries.

Parts Washer

Features

  • Wash Pump Horsepower
    • Model TL-5500 – 1HP
    • Model TL-6100 – 1HP
    • Model TL-8100 – 3HP

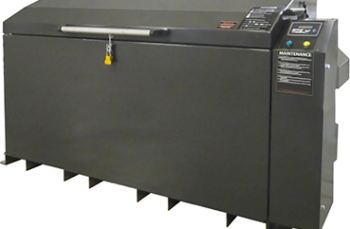

    • Model TL-8100S – 5HP
  • Electric Solution Heat – 140º F, 185º F Approx. Max.
  • Solution Tank Capacity
    • Model TL-5500 – 40 Gallons
    • Model TL-6100 – 75 Gallons
    • Model TL-8100 – 113 Gallons
    • Model TL-8100S – 170 Gallons
  • Pump & Heater Protection (Tank Low Level Shut Down)
  • Removable Debris Tray – Sump Tank Debris Containment
  • Rotating Manifold c/w High Pressure Spray Nozzles

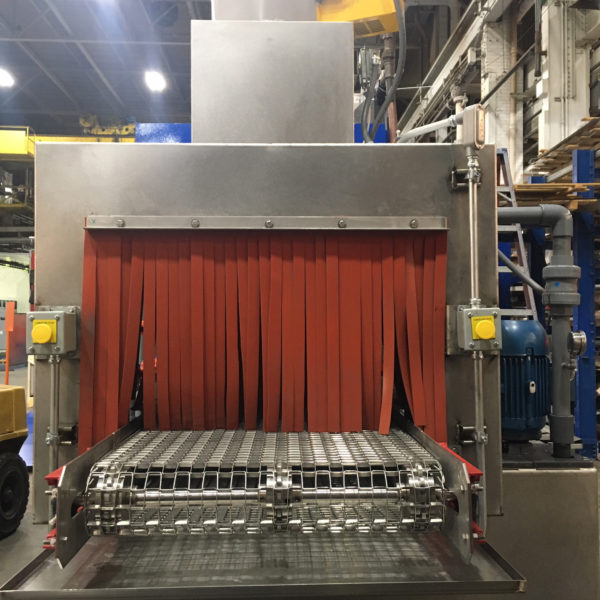

TruClean Custom Conveyor Washer

Specifications

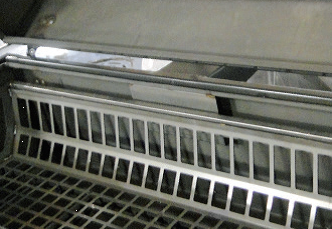

  • Parts Process Basket
    • Model TL-5500 – 18.5” Deep x 15” Wide x 17” High

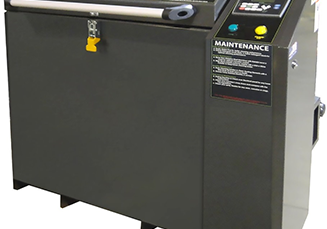

    • Model TL-6100 – 22.5” Deep x 17” Wide x 17” High
    • Model TL-8100 – 22.5” Deep x 33” Wide x 22” High
    • Model TL-8100S – 22.5” Deep x 60” Wide x 20” High
  • 500lb. Load Capacity
  • Stainless Steel Tank & Housing
  • Load Door Safety Switch
  • Electrical Control Panel
    • TL 5500 – 220V/1/60
    • TL 6100 – TL8100 Stretch – 220/1/60 – 460/3/60
  • Disc Oil Skimmer
  • Automatic Water Make Up c/w Soap Injector
  • Programmable Controller (c/w onboard I/O)
    • Built-in textual HMI panel
    • Unitronics Jazz/M91 Series All-in-One PLC
    • Variable Wash Cycle Timer
    • Programmable Heater Timer – 7 Day
Industrial-conveyor-washer

Options & Additional Info

Available Options:

  • Solution Filter
  • Ball Type Drain Valve – 2” NPT

Approximate Dimensions:

  • Model TL-5500 – 4’-7” High x 3’-7” Wide x Length x 2’-7” Deep
  • Model TL-6100 – 4’-7” High x 3’-7” Wide x Length x 2’-7” Deep
  • Model TL-8100 – 3’-10” High x 4’-7” Wide x Length x 2’-1” Deep
  • Model TL-8100S – 3’-11” High x 6’-11” Wide x Length x 4’-1” Deep

Delivery:

  • Eight (8) Weeks

Industries Served

Industry Applications

  • Aerospace
  • Automotive
  • HVAC
  • Metalworking and Stamping
  • Custom Fabrication
  • Specialty Machining
  • Remanufacturing
  • Transportation
