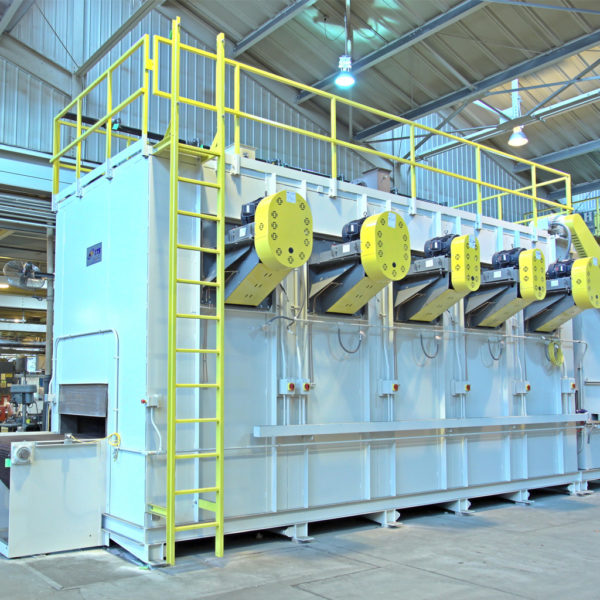

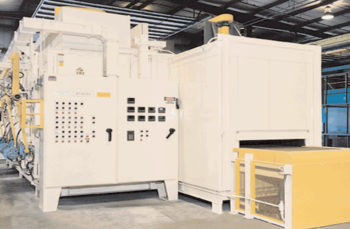

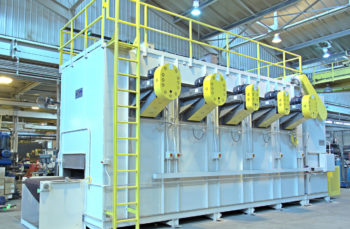

Thermal Degreasing Process Oven

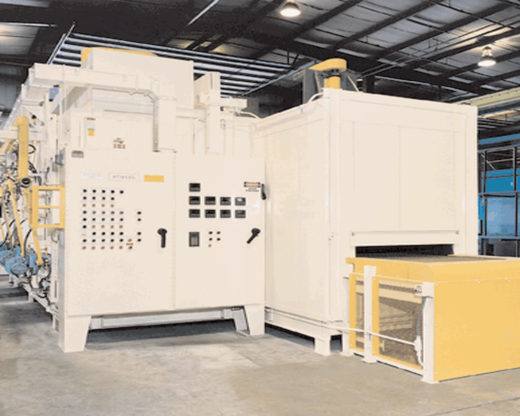

Thermal Degreasing Oven

Thermal Degreasing Ovens cost-effectively remove lubricating oils.

Overview

The function of a Thermal Degreasing Oven is to cost effectively remove tooling oils from metal worked components or heat exchangers by vaporizing the oil. To meet air quality and other environmental requirements, a thermal oxidizer system can be incorporated into the oven. Our R&D Department can provide testing in collaboration with your machine tool oil supplier to help you develop a thermal degreasing process.

Each Industrial Oven project undergoes a comprehensive evaluation of every production requirement. The assessment includes areas such as production goals, part configuration and construction, part mass, temperature profile, and facility location or elevation.

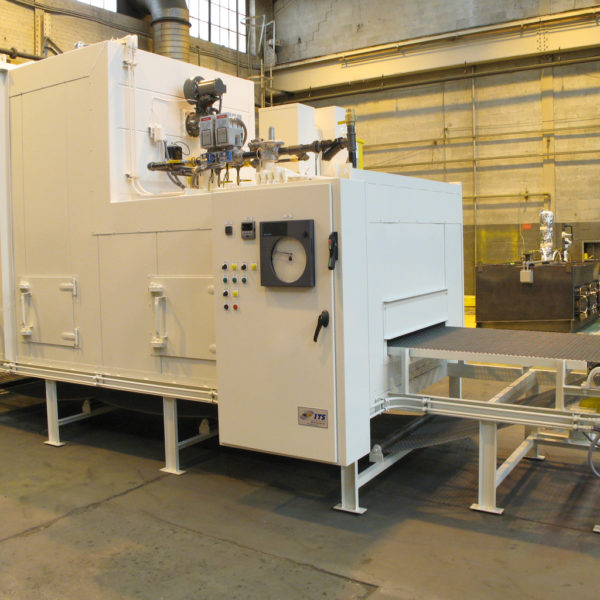

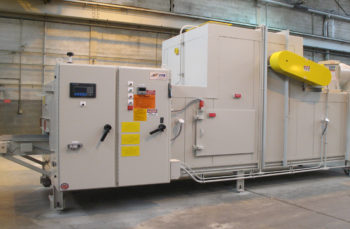

Industrial Oven | Annealing Oven

Features

  • Recirculation fans with high efficiency motors to reduce energy consumption.
  • Recirculation ductwork designs provide precise airflow to specific areas of the product resulting in smaller foot print ovens thus reducing utility and factory space costs.
  • High-efficiency (gas or electric) heat sources to reduce energy costs.
  • Robust structural oven frames and component supports.
  • Application specific insulation materials are selected to provide optimum insulating characteristics and long term energy savings.
  • Design considerations for easy access to process areas and oven components.
  • Private labeled and purchased components meet UL, UR, and CE standards.
  • Programmable controllers with HMI (Human Machine Interface) displays allow for user friendly operation and machine diagnostics.
  • NEMA style control panels.
  • Factory tested to ensure on time delivery and field start up.
  • 24/7 factory direct technical service and spare parts group.

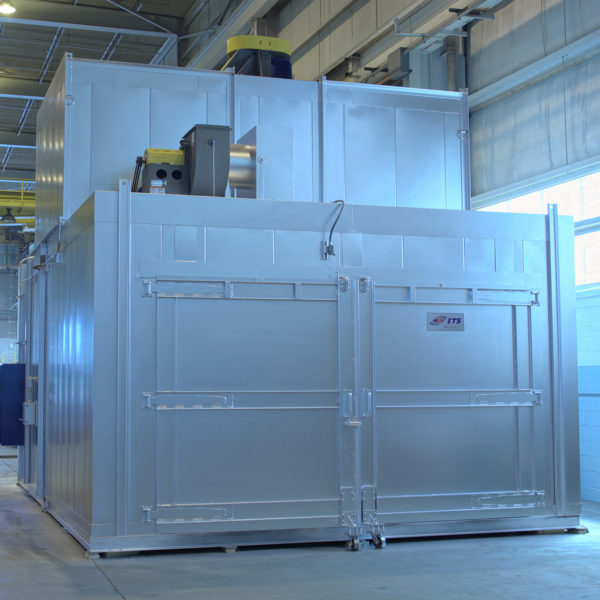

Industrial Batch Oven, Composite Cure Oven

Specifications

Each Thermal Degreasing Oven is designed for the specific application and environment.

Temperature Ranges up to 750°F (399°C)

Power Source Options

  • Main Power Supplies 208 to 690 Volt AC, 50 and 60 HZ
  • Control Voltage 24 Volt DC or 120/220 Volt AC

Heat Sources

  • LPG
  • Natural Gas
  • Fuel Oil
  • Other Fuel Mixtures

Material Handling Options

  • Belts: Flat Wire, Balanced Weave, Mesh and various non-metallic materials
  • Chains: Horizontal, Vertical, Slat and other attachments
  • Overhead: Enclosed Track and I-beam

Construction Specifications

  • Heavy gauge Aluminized Steel
  • 304, 316 Stainless Steel or other Nickel Alloys for temperature and corrosion resistance
  • High-Density energy-saving insulation
  • Panel or can type construction available
  • Access to the interior of the oven, fan, and heating chamber
Industrial Oven | Calcining Oven

Options

  • Inert atmosphere ovens and furnaces.
  • Can construction oven and furnace bodies.
  • Exhaust air to air heat recovery systems.
  • Thermal and regenerative oxidizers.
  • Industrial computers with Ethernet for remote diagnostic and communication capabilities.
  • UL or CE certified control panels or complete systems.
  • PE certifications to meet a variety of client or government specific requirements.
  • Advance thermal, vibratory, and dB testing with certification.
  • In-house laboratory featuring a custom test oven and other related thermal equipment.
  • Factory direct installation services.
  • Conduct an energy efficiency analysis on the existing thermal processing equipment.
  • Upgrade for all makes and models of thermal processing equipment to meet today’s process, energy, and government standards.

Industries

Typical Heat Processing Application(s)

  • Extruded Components
  • Heat Exchangers
  • Machined Components
  • Metal Stamping Components
  • Metal Worked Components

Industry Applications

  • Aerospace
  • Agriculture
  • Automotive
  • Heavy Duty Equipment
  • HVAC
  • Mining
  • Transportation
Aerospace industry

Downloads

Heat Treat 101

Download Brochure

International Thermal Systems Overview

Discover Industrial Products Division

Contact the ITS Oven Group

We are ready to assist with application recommendations and product proposals.
