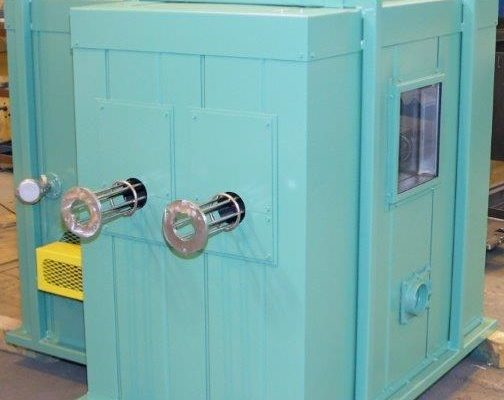

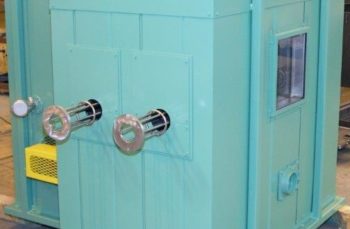

End Dryer

Can End Dryers dry the sealing compound on aluminum or steel can ends and caps for the 2 or 3 piece beverage, aerosol, and food can industries.

Overview

ITS manufactures a variety of cap and end drying ovens for closure sealing compounds.

Cap and End Drying Ovens dry the sealing compound on aluminum or steel can ends and caps for the 2 or 3 piece beverage, aerosol, and food can industries.

End Drying Ovens will allow for a low temperature cure to eliminate a blistered compound on can ends, guaranteeing a cure rate of 90-95%. End Drying Ovens are capable of producing up to 4,000 Ends per Minute (EPM) and accommodate a range of 202 to 610 diameter.

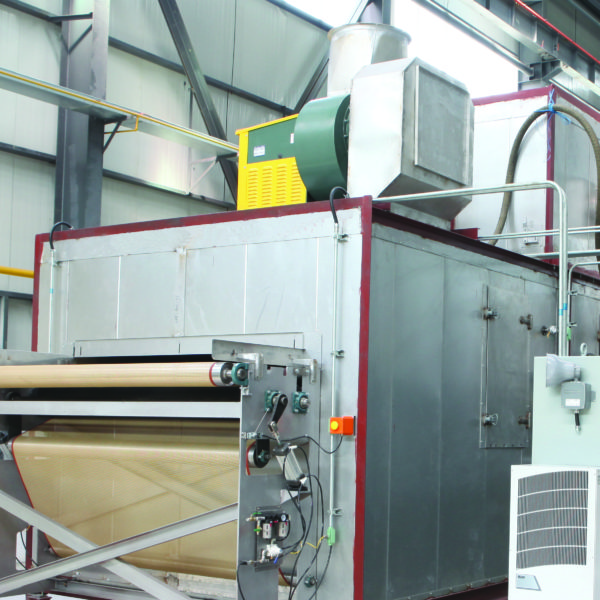

Cap Drying Ovens convey the cap horizontally guaranteeing a uniform compound thickness. The Cap drying oven boasts superior temperature uniformity and produces up to 4,000 Caps Per Minute (CPM). Our featured synthetic belt results in a 25%* decrease in cap heat up time, 40% decrease in energy consumption compared to a metal belt, and eliminates metal fines.

Vertical Cap Drying Ovens convey the cap vertically while keeping the cap in a horizontal position to guarantee a uniform compound thickness. The vertical configuration reduces the equipment footprint by 50%. The conveyor system creates positive cap separation and prevents marring. The universal cap holder will accommodate multiple cap diameters.

cap oven
Can Washer System

Features

  • The compact design of an ITS End Drying Oven will easily fit into a new or existing production line.
  • Proprietary ITS air flow management system to provide optimal heating and drying.
  • The convection airflow allows for a low operating temperature for blister free drying.
  • Guaranteed 90% to 95% dryness.
  • Vertical and horizontal oven designs
  • Serpentine or straight lane design
  • Single and dual lane oven design
  • Synthetic Horizontal Belt

Specifications

  • Heavy gauge Aluminized Steel
  • High-density energy-saving insulation
  • Panel or can type construction
  • Access to the interior of the oven, fan, and burner chamber

Heat Sources

  • Electric
  • LPG
  • Natural Gas
  • Fuel Oil
  • Other Fuel Mixtures

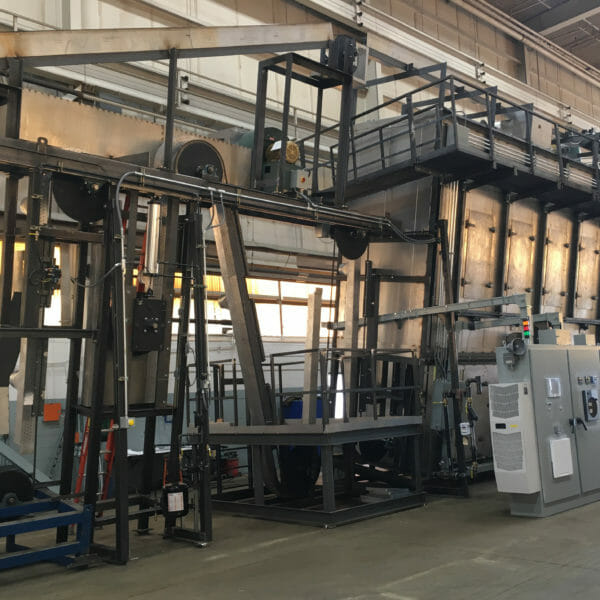

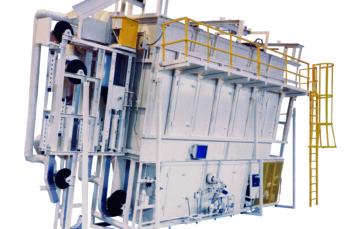

pin oven

Options

  • Vertical or horizontal oven design
  • Single or Dual Lane
  • Serpentine or Straight Lane Design
  • Optional cooling chamber

Temperature Ranges Up to 350°F (177°C)

Power Source Options

  • Main Power Supplies 208 to 690 Volt AC, 50 and 60 HZ
  • Control Voltage 24 Volt DC or 120/220 Volt AC

Industries

  • Aerosol
  • Food
  • Beverage
  • Pet Food

Downloads

cap drying ovens

Cap and End Drying Ovens

Download Brochure

International Thermal Systems Overview

ITS Company Brochure

Contact the Metal Packaging Group

We are ready to assist with application recommendations and product proposals.
