Monorail Washer

Industrial monorail parts washers are designed for mass production utilizing an overhead trolley type system. International Thermal Systems’ Monorail Parts Washer Systems are designed to satisfy the most difficult part cleaning applications.

Monorail Washer Types:

  • Split top housing type design
  • Enclosed Housing Design
  • Enclosed track conveyor
  • I-Beam Conveyor
  • Power & Free Conveyor

Monorail Parts Washer Overview

Monorail parts washers can feature internal or external monorail mounting systems, depending on the customer’s specific application. For external mount applications, the monorail system sits above the washer system. The monorail and track are located outside of the enclosure of the washer and wash zones of the washer.  Only the part and/or part hanger will be washed with this type of system. With the external mount monorail system, the top of the washer will have an opening to the exterior of the washer canopy. For internal mount applications, the monorail system is located within the enclosure of the parts washer. This type of monorail system will allow the monorail and track be cleaned along with the parts and/or hangers. With the internal mount monorail system, the top of the washer will be completely closed.

Hangers can be manufactured to hold specific parts without scratching the part surface. Our monorail parts washers can accommodate a wide variety of part sizes and custom hanger designs. ITS can build stand-alone or inline systems for parts cleaning, phosphatizing, pre-paint cleaning and a variety of other processes.  Typical process stages may include: pre-wash, single or multiple wash stages, single or multiple rinse stages and ambient or heated blow-off. Typical products cleaned may include items such as metal stampings, machined components and part assemblies.

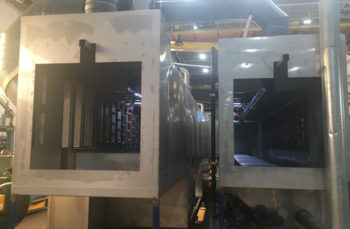

International Thermal Systems Monorail Washer

Features

  • Single or multi-stage design
  • Ambient or hot air blow-off
  • Vertical pumps
  • CPVC piping

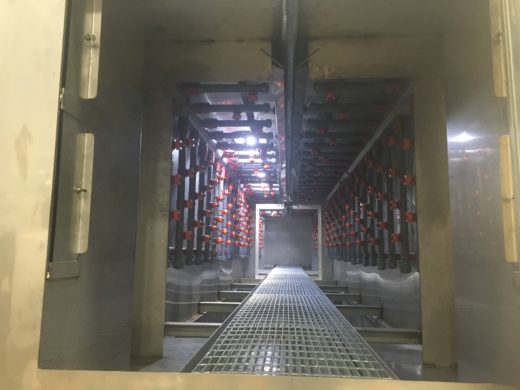

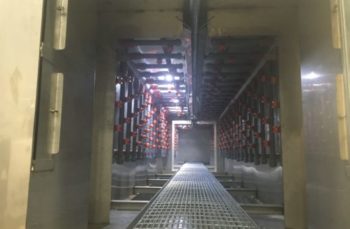

  • Removable spray piping and adjustable sprays
  • Double welded, water tight tanks
  • Sloped bottom solution tanks
  • Solution tank access lid
  • Pump screens
  • Lift-off housing access doors
  • Automatic tank level controls
  • Tank drains and overflow
  • Variable Speed Drive Control
  • Nema 12 control panel – Relay or Programmable Logic

Specifications

Voltages Available

  • Control Voltage 24 Volt DC or 120 or 220 Volt AC

Heat Sources

  • Electric
  • LPG
  • Natural Gas
  • Steam

Construction Specifications

  • Stainless Steel 304, 316

Options

Optional Features:

  • Oil Removal Systems
  • Solution Filtration
  • Chip Baskets
  • Powered Exhaust
  • Machine Insulation
  • Chemical Monitoring & Control
  • Specified PLC & HMI
  • Specialty Hangers Available
  • Process Monitoring Systems
  • Custom Hangers Prototype Designing Available

Industries

  • Aerospace
  • Automotive
  • Electronics
  • HVAC
  • Metalworking and Stamping
  • Mining
  • Pharmaceuticals
  • Printing
  • Transportation
