Industrial Furnace | Stress Relief Furnace

Stress Relief Furnaces

Stress Relief Furnaces relieve stresses in materials generated by welding, machining, or heat processing.

The purpose of a Stress Relief Furnace is to raise the temperature of a component to slightly below the transformation temperature. This elevation in temperature eliminates internal stresses caused by secondary processes such as welding, machining, or cold forming. Upon reaching completion of the heat-up and hold cycle, the parts are then cooled at a controlled rate.

There are many advantages to stress relieving:
It relieves internal stresses without causing any color change.
It returns the material to a strength level approximately equivalent to where it was prior to forming.
It increases mechanical strength of the material.
Welded structures can be made tension free by stress relieving.
Terry, Mechanical EngineerInternational Thermal Systems

Stress Relieving – Hot Load Quench



Watch Video

Overview

Stress Relief Furnaces relieve stresses in materials generated by welding, machining, or heat processing.

The purpose of a Stress Relief Furnace is to raise the temperature of a component to slightly below the transformation temperature. This elevation in temperature eliminates internal stresses caused by secondary processes such as welding, machining, or cold forming. Upon reaching completion of the heat-up and hold cycle, the parts are then cooled at a controlled rate.

Each Industrial Furnace project undergoes a comprehensive evaluation of every production requirement. The assessment includes areas such as production goals, part configuration and construction, part mass, temperature profile, and facility location or elevation.

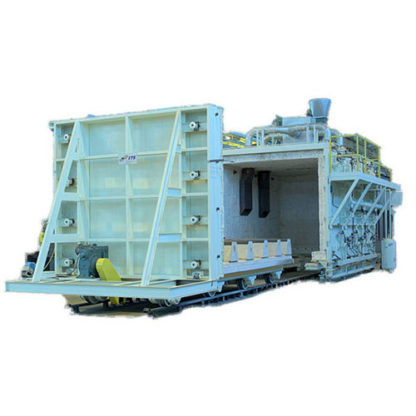

Car Bottom Furnace
Industrial Furnace | Box Furnace

Features

Stress Relief Furnace Features include:

  • Economical operation is achieved with superior thermal process engineering practices that apply state-of-the-art insulation material, airflow management, and custom programming.
  • Recirculation fans with high efficiency motors to reduce energy consumption.
  • Recirculation ductwork designs provide precise airflow to specific areas of the product resulting in smaller foot print ovens thus reducing utility and factory space costs.
  • High-efficiency (gas or electric) heat sources to reduce energy costs.
  • Robust structural oven frames and component supports.
  • Application specific insulation materials are selected to provide optimum insulating characteristics and long term energy savings.
  • Design considerations for easy access to process areas and oven components.
  • Private labeled and purchased components meet UL, UR, and CE standards.
  • Programmable controllers with HMI (Human Machine Interface) displays allow for user friendly operation and machine diagnostics.
  • NEMA style control panels.
  • Factory tested to ensure on time delivery and field start up.
  • 24/7 factory direct technical service and spare parts group.
Car Bottom Furnace - Industrial Furnace

Specifications

Temperature Ranges up to 1800°F (982°C)

Heat Source

  • Electric
  • LPG
  • Natural Gas
  • Fuel Oil
  • Other Fuel Mixtures

Material Handling Options

  • Belts: Flat Wire, Balanced Weave, Mesh
  • Chains: Horizontal, Vertical, Slat and other attachments
  • Walking Beams and Roller Hearths also available
  • Rotary Hearth

Construction Specifications

  • Heavy Duty Welded Steel exterior
  • Stainless Steel and various Metal Alloys for temperature requirements
  • High-Density energy-saving insulation
Industrial Furnace | Clam Shell Furnace or Tip Up Furnace

Options

Available Options

Each Stress Relief Furnace is designed for the specific application and environment.

Industries

Typical Heat Processing Application(s)

  • Machined Components
  • Welded or Formed assemblies
  • A component that has received a secondary operation that produces internal stress.

Industry Applications

  • Aerospace
  • Automotive
  • Electronics
  • And so many more

Downloads

Stress Relief Furnace Brochure

Download the Stress Relief Furnace Brochure

International Thermal Systems Overview

Discover Industrial Products Furnace Division

Contact the ITS Furnace Group

We are ready to assist with application recommendations and product proposals.
