Curing Oven

Curing Oven

Curing ovens raise the product mass and coated material to a specified temperature and holds this temperature for a set time. Curing Ovens cure parts, coatings, and adhesives.

Curing: Curing ovens raise the product mass and coated material to a specified temperature and holds this temperature for a set time. Curing Ovens cure parts, coatings, and adhesives.
Mike, Sales ManagerInternational Thermal Systems

Overview

Curing Ovens cure parts, coatings, and adhesives.

The function of a Curing Oven is to cure a part, coating, or adhesive. Depending upon the process and production requirements, a Batch or Conveyor configuration can be engineered. To meet both process and safety requirements, the exhaust system is engineered to accommodate specific moisture, solvent, and fume release rates. Multiple heat zone configurations can be designed to maximize curing efficiency.

Each Industrial Oven project undergoes a comprehensive evaluation of every production requirement. The assessment includes areas such as production goals, part configuration and construction, part mass, temperature profile, and facility location or elevation.

Indirect Gas Fired Indexing Cure oven

Features dual indexing conveyors, with adjustable index times, two zones of temperature control and a 4 station Push/Pull Cooler.

The oven includes a thermal oxidizer to reduce solvent emissions to local code. The system temperature, door control and index timing along with start/up, shutdown and alarm annunciation is PLC controlled for system flexibility.

Industrial Oven | Annealing Oven

Features

Clam Shell Furnance Features include:

  • Minimizes floor space usage
  • Gas (direct and indirect) and electric versions
  • Heavy plate construction
  • Designed for overhead or front loading
  • Accepts heavy loads
  • Energy efficient ceramic fiber insulation
  • NEMA 12 Control Panel (machine-mounted)
  • Hydraulic lift system
  • Single button E-stop on control panel
  • Burner safety equipment
  • Furnace chamber and hi-limit microprocessor based temperature controllers
  • Electric version SCR controlled
  • Low mass pier system with optional hearth
  • Excellent temperature uniformity

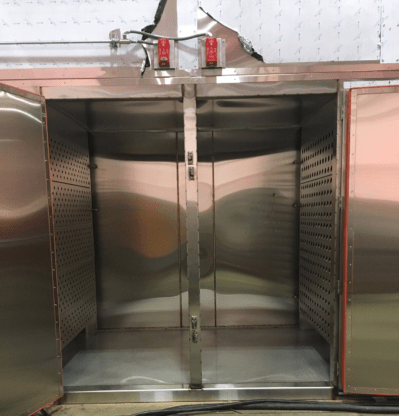

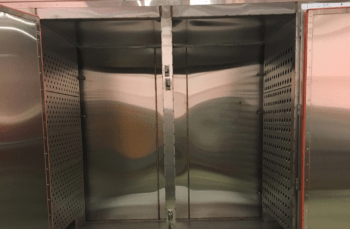

Industrial Batch Oven, Composite Cure Oven

Specifications

Each Clam Shell Furnace is designed for the specific application and environment.

Temperature Ranges up to 2500°F (1371°C)

Power Source Options

  • Main Power Supplies 208 to 690 Volt AC, 50 and 60 HZ
  • Control Voltage 24 Volt DC or 120/220 Volt AC

Heat Sources

  • Electric
  • LPG
  • Natural Gas
  • Fuel Oil
  • Other Fuel Mixtures

Material Handling

Fixed Hearth

Construction Specifications

  • Plate Steel shell and heavy structural frame
  • Cast Hearth and Piers or Ceramic Fiber with Alloy Piers
  • Stainless Steel and various Metal Alloys for temperature and corrosion resistance
  • High-Density energy-saving insulation
Industrial Oven | Calcining Oven

Options

Additional Options:

  • PLC/HMI for process automation
  • Data acquisition
  • Inert gas construction
  • Recirculation fans
  • Automatic shutdown circuit
  • UL/CE listed electrical panel
  • Special temperature uniformities
  • Hearth roller rails
  • Load tables
  • Spare parts
  • Field installation, installation supervision and commissioning
  • Temperatures to 3300°F

Industries

Typical Heat Processing Application(s)

  • Annealing
  • Machined Components
  • Welded or Formed Assemblies
  • Stress Relieving

Industry Applications

  • Aerospace
  • Agriculture
  • Aluminum Casting
  • Automotive
  • Forging
  • Foundry
  • Military
  • Mining
  • Recreational Vehicles

Downloads

Heat Treat – Curing

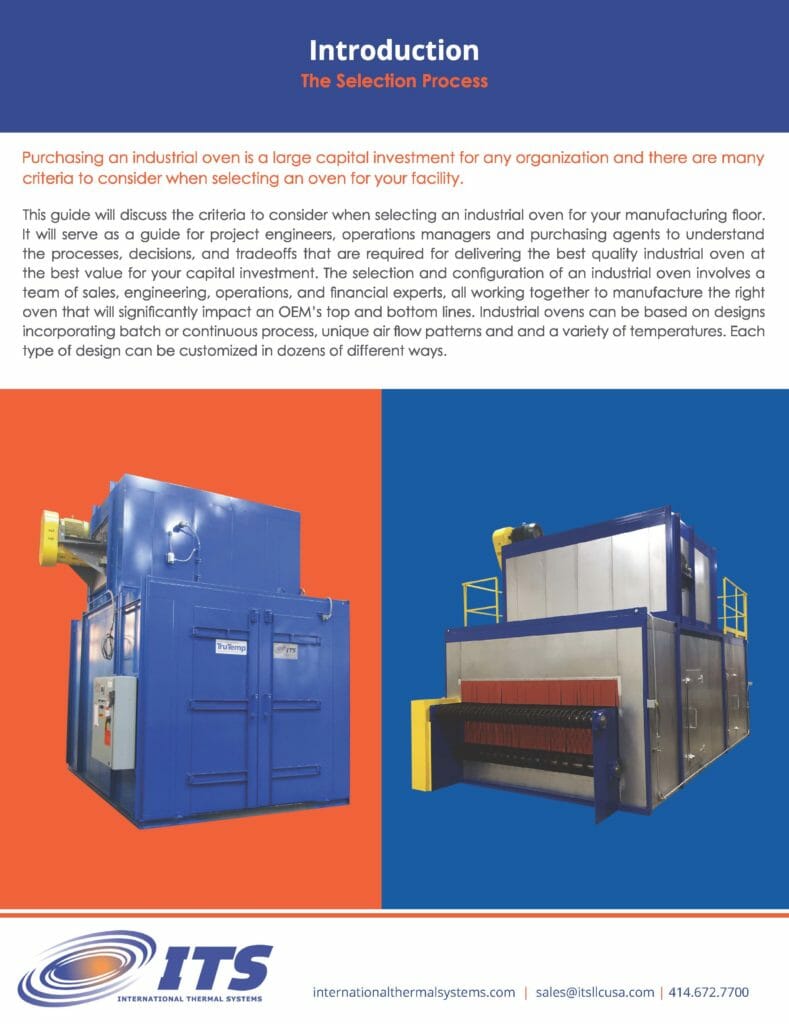

Download Brochure

International Thermal Systems Overview

Discover Industrial Products Division

Contact the ITS Oven Group

We are ready to assist with application recommendations and product proposals.
