Industrial Batch Oven, Composite Cure Oven
Industrial Batch Oven

Batch Oven

Industrial Batch Ovens can be used for a wide variety of heat processes including dryingcuringpowder coating, aging, annealing, stress relieving, bonding, composite curingtemperingpreheating, and forming. ITS manufactures both large and small batch ovens that can be used for a wide variety of heat treating applications. Standard batch ovens are offered in many sizes, with multiple options available upon request.  ITS also manufactures custom engineered batch ovens.

What makes an ITS Batch Oven the best batch oven in the industry?    Air Flow Design
The ITS batch oven performs better than the competition because of the proprietary air flow design of our batch ovens. The ITS engineers are experts in air flow design so our customers can be assured that their part will be processed completely, saving both time and energy.

There are many options in the market for batch ovens. ITS offers not only a highly engineered, quality built oven, but we also provide superior air flow design.
Marshall, General ManagerInternational Thermal Systems
Industrial Batch Oven

Overview

Standard Batch Oven vs. Custom Batch Oven

ITS designs and manufactures custom and standard batch ovens to meet the strict demands of our customers.

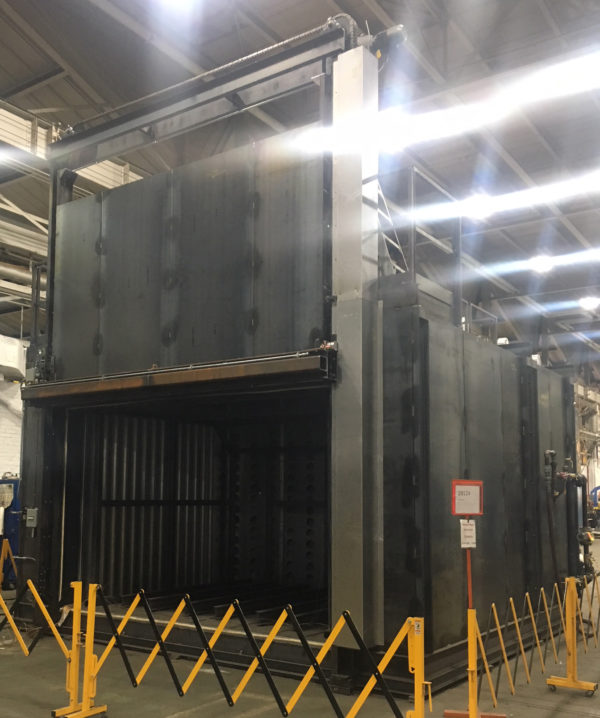

A custom batch oven is engineered specifically for your application, part size, uniformity requirements and process.

A standard batch oven is a pre-engineered and tested batch oven that can be used to meet the majority of our customer’s needs.  Standard batch oven are offered in many sizes with multiple options available upon request. The advantage of a standard oven is it has a shorter lead time and reduced cost, but still with many of the features of a custom oven.

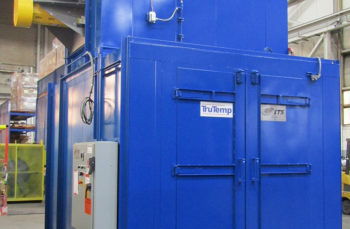

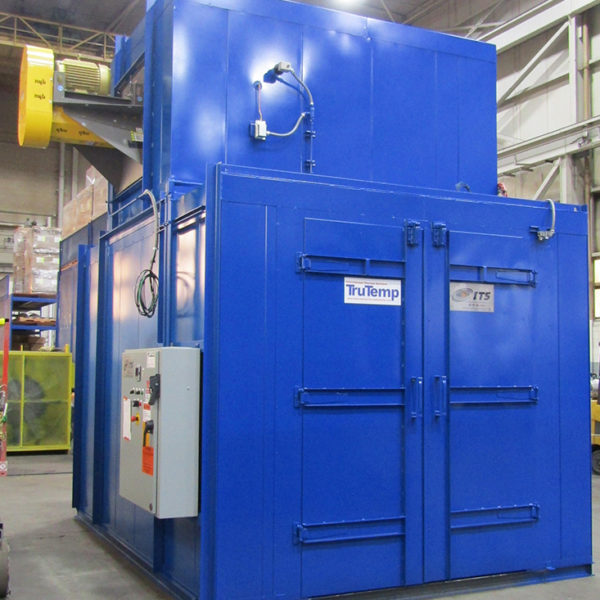

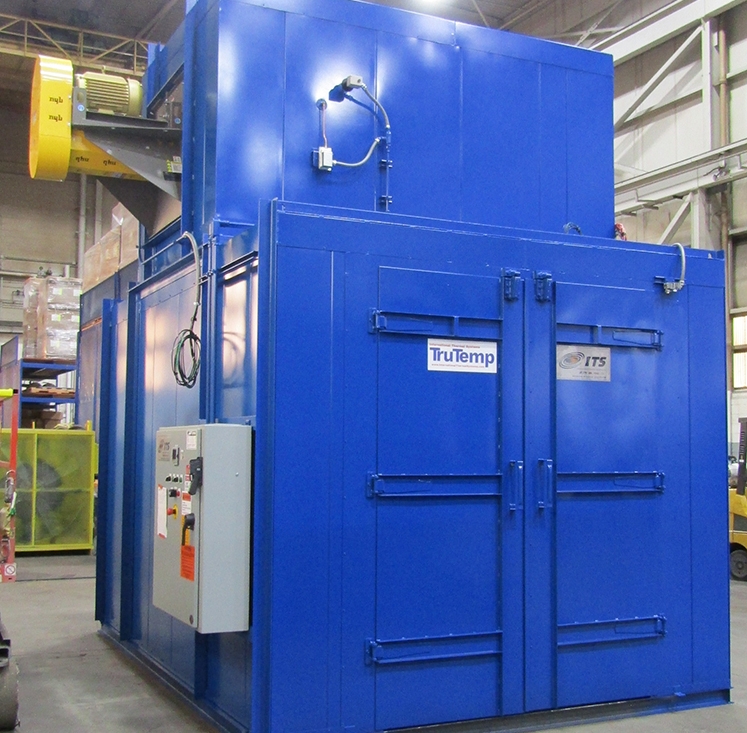

The ITS line of batch ovens is the TruTemp™ series.

All TruTemp™  ovens are engineered to meet ± 10°F uniformity with options for ± 5°F or even tighter if needed.

TruTemp™ Batch Ovens offers industry leading heat processing technology at an affordable price point. Our TruTemp™ Batch Oven line is offered in standard chamber sizes up to 20′ long and work space heights up to 8′.  Need a larger oven? ITS will designs a custom batch oven for your application, part size and heating requirements.

TruTemp™ Batch Oven have been engineered with the highest quality, airflow technology and design in the industry.  All TruTemp™ ovens are built to operate 24 hours a day 7 days a week to meet your production needs.

For applications over 1,000°F, ITS offers the TruTemp™ Box Furnace.

Contact our sales department to design your standard or custom oven today. Begin by completing the Request a Quote form.

ITS Batch Ovens and Conveyor Ovens
Three 5 Air Flow Technology for Batch Ovens

The ITS difference: Three 5 Air Flow Technology

ITS has always been a step ahead of the competition when it comes to airflow and heat transfer applications.

The most difficult applications are large oven chambers by volume. Our solution is Three 5 Air flow Technology. This technology provides consistent airflow and heat processing through the entire oven. Products are treated with a uniform air flow throughout the oven chamber, no matter where they are located. Contact the ITS Oven group to learn more about Three 5 Air Flow Technology and how it can benefit your application.

Industrial Batch Oven

Features

TruTemp Batch Oven Features include:

  • Available with Electric or Gas Heat
  • Temperatures to 500°F Max.
  • Aluminized Steel Construction
  • Full Height Ducts for Uniform Airflow Distribution
  • +/- 5°F (2.8°C) Temperature Uniformity Thru the Work Chamber
  • Nema 12 rated Control Panel
  • Single Button E-stop on Control Panel
  • Main Power Disconnect
  • Heating Safety Equipment
  • Oven Temperature Control
  • All Units Factory-Tested
batch oven

Specifications

Heat Sources

  • Electric
  • LPG
  • Natural Gas

Material Handling (loading/unloading) Options

  • Cart
  • Drag Chain
  • Overhead Conveyor
  • Roller Rack
  • Skid or Pallet
  • Slat Conveyor

Typical Heat Processing Application(s)

  • Aluminum Aging
  • Heat Treating
  • Preheating
  • Paint or Powder Curing
  • Motor Varnish Baking
  • Steel Weld Fabrications
  • Vacuum Forming
ITS Batch Ovens and Conveyor Ovens

Options

Available Options

  • Powered Exhaust
  • Shutdown Timer

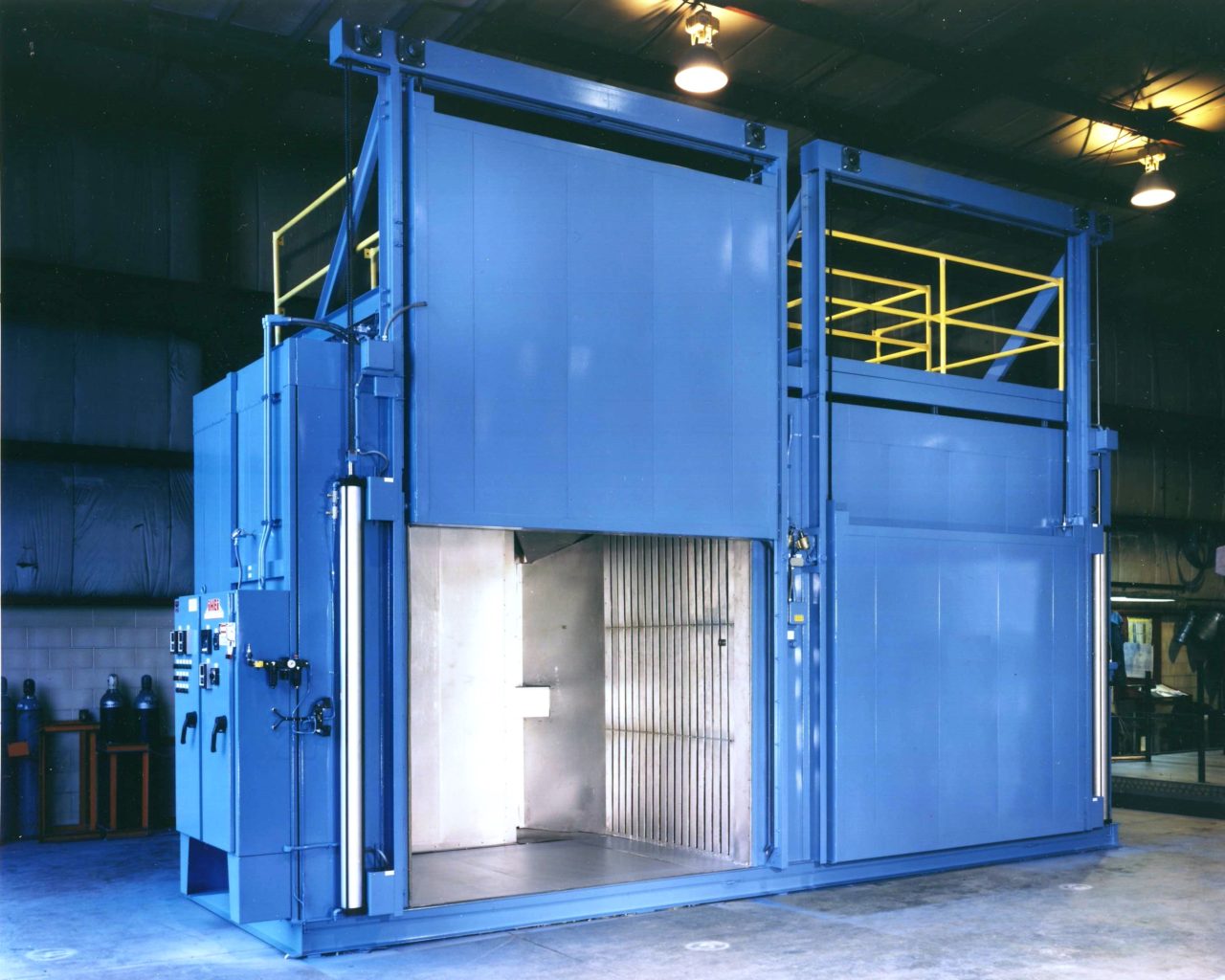

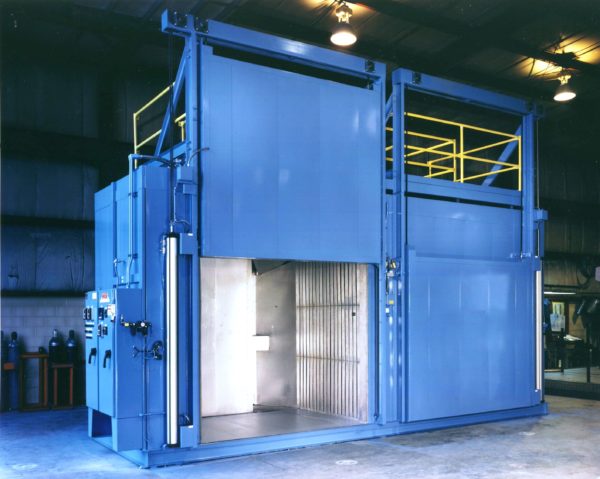

  • Vertical Lift Door/High Speed Insulated Roll-up Door
  • Composite Option (Vacuum Pumps, Ports, and associated equipment)
  • Trolley Rail Cutouts
  • Pass-Thru Design
  • Floor Design – Plate, Insulated, Cart
  • Powder Paint Setting and Curing
  • Three 5 Air Flow Technology
  • Stainless Interior
  • Ramp/Soak Control
  • Spare Parts
  • Optional Voltages

Temperature Ranges up to 1000°F (538°C)

Power Source Options

  • Main Power Supplies 208 to 690 Volt AC, 50 and 60 HZ
  • Control Voltage 24 Volt DC or 120/220 Volt AC

Industries

Downloads

International Thermal Systems Overview

Discover Industrial Products Division

Contact the ITS Oven Group

We are ready to assist with application recommendations and product proposals.
