Industrial Aluminum Heat Treat Furnaces

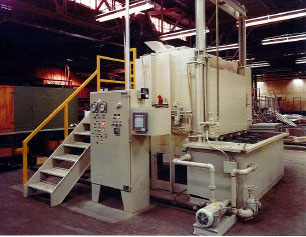

Horizontal Quench Aluminum Heat Treat Furnace

All ITS Horizontal Quench Furnaces are designed to operate with tight uniformities from 300°F to 1200°F for maximum flexibility to allow for aging and annealing.
Complete factory testing prior to shipment and full installation & start-up services ensures a smooth project from start to finish.

Tight Tolerance Aluminum Furnace Systems

Maintaining tight tolerances is critical for Aluminum Heat Treating applications.

Tight Tolerance Heat Treat Furnace

Horizontal Quench Aluminum Heat Treat Furnace Overview

ITS specializes in large volume workspaces with lengths to 40’ and heavy loads with sizes to 20,000 lbs.

ITS Horizontal Quench Aluminum Solution Heat Treat Furnaces meet all industry specifications including AMS, MIL, NADCAP & CQI 9. Proprietary air recirculation systems and lightweight ceramic fiber insulation systems ensure the fastest heat-up and recovery times available.

Featured in Industrial Heating Magazine

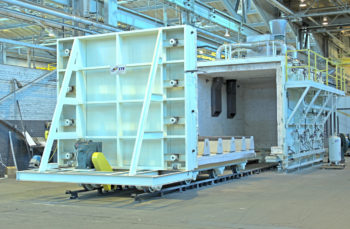

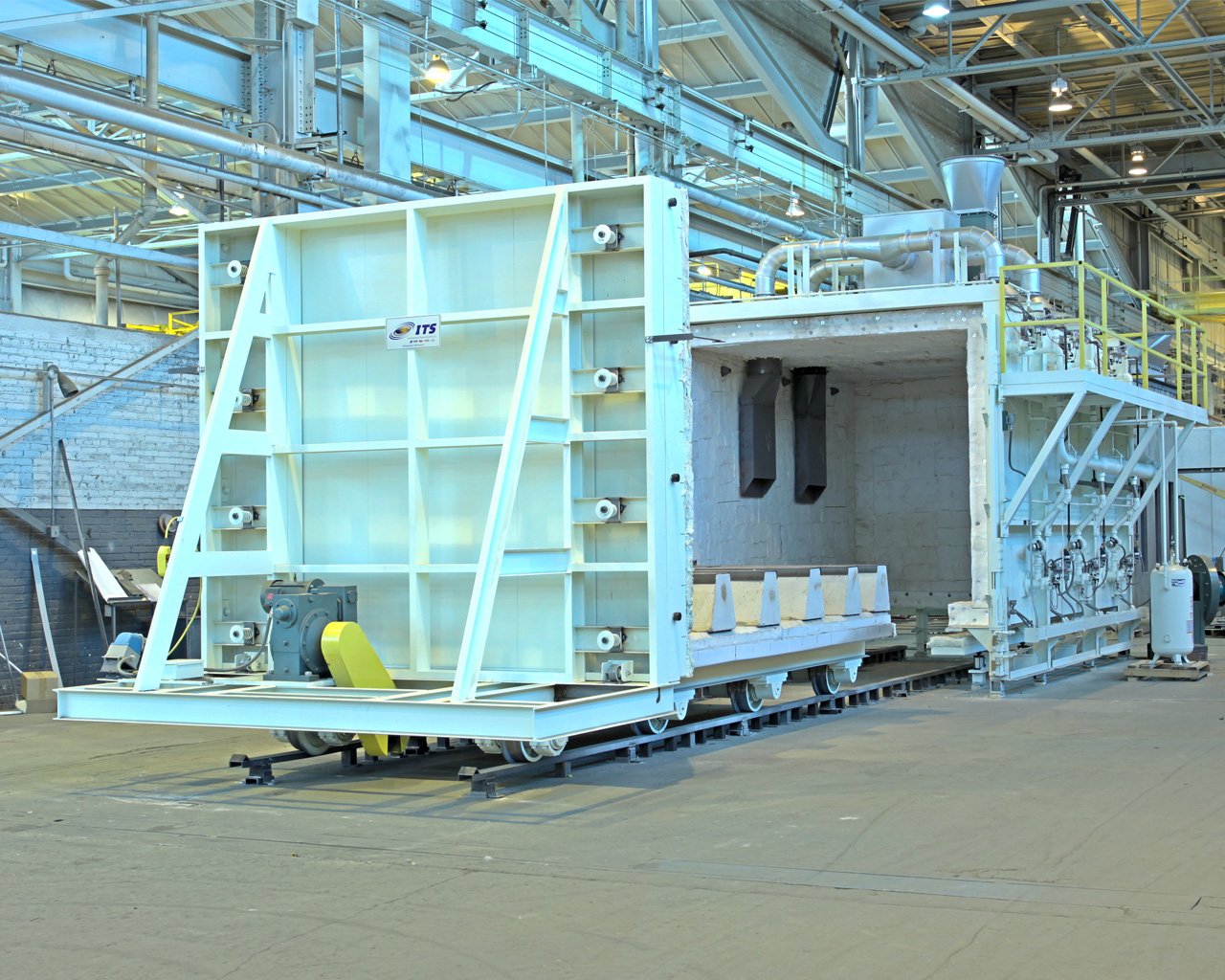

Car Bottom Furnace - Industrial Furnace

Features

  • Meets all Aerospace, MIL & Automotive specifications
  • Fastest heat-up & recovery rates
  • High Efficiency gas(Direct & Indirect) and electric versions
  • Variable speed hoist system
  • Heavy plate construction
  • Accepts heavy loads
  • Energy efficient ceramic fiber insulation
  • NEMA 12 Control Panel (machine-mounted)
  • Sliding positive sealing door systems
  • PLC/HMI for process automation
  • High volume recirculation air system
  • Front quench tank(water/glycol) with load/unload station
  • Application specific insulation material, airflow management, and custom programming
  • Recirculation fans with high efficiency motors to reduce energy consumption
  • Recirculation ductwork designs provide precise airflow to specific areas of the product resulting in smaller foot print furnaces thus reducing utility and factory space costs
  • Robust structural furnace frames and component supports
  • Design considerations for easy access to process areas and furnace components
  • Heavy Duty quench tank construction
  • Manual and automatic quenching options
  • Pre-packaged optional quench tank heating/cooling systems
  • Private labeled and purchased components meet UL, UR, and CE standards. Programmable controllers with HMI (Human Machine Interface)

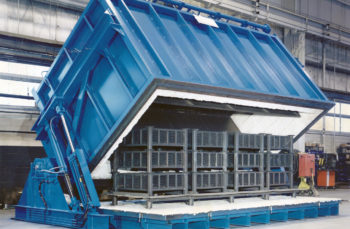

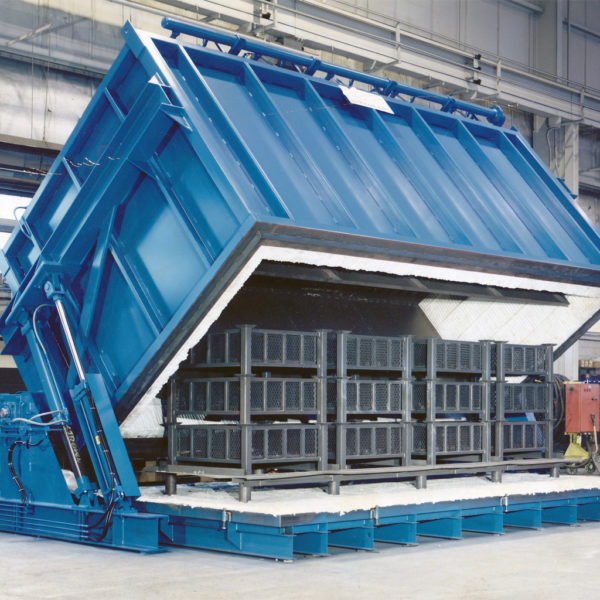

Industrial Furnace | Clam Shell Furnace or Tip Up Furnace

Specifications

Systems can be designed for +/-5°F depending on the customers’ requirements. The furnace can be designed to operate as low as 250°F to allow for Aging and Annealing as well.

Temperature Ranges

  • Up to 1200°F (649°C)

Power Source Options

  • Main Power Supplies 208 to 690 Volt AC, 50 and 60 HZ
  • Control Voltage 24 Volt DC or 120 or 220 Volt AC

Heat Sources

  • Electric
  • Natural Gas

Typical Heat Processing Application(s)

  • Solution Heat Treat of various alloys

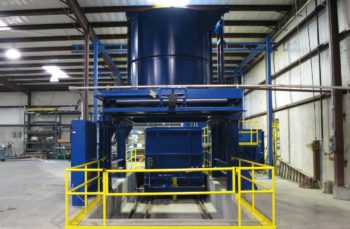

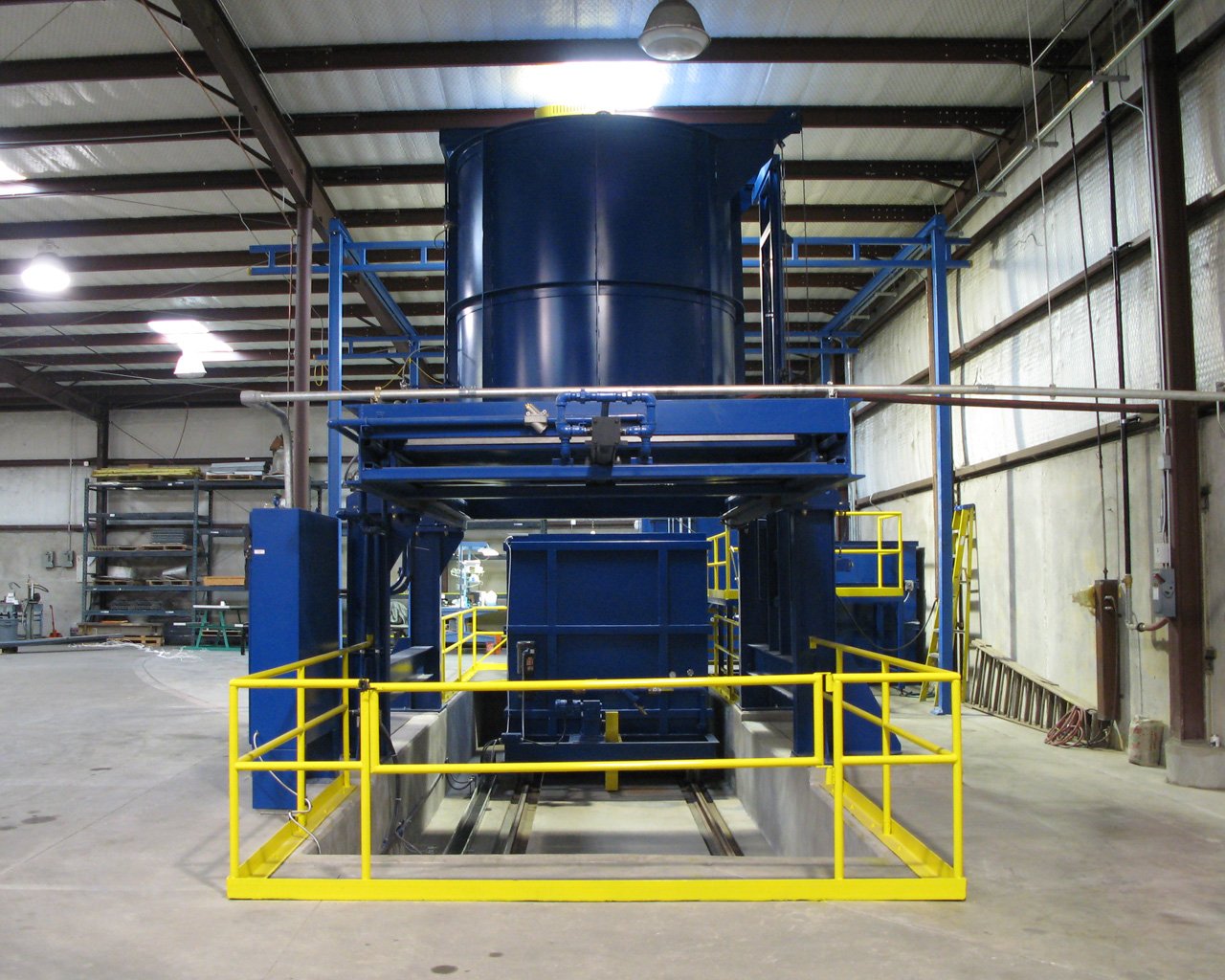

Industrial Furnace | Solution Heat Treat Furnace

Options

  • Data acquisition
  • Quench tank heating/cooling
  • Rinse tank
  • Filtration systems
  • Glycol separation systems
  • Automatic Shutdown Circuit
  • UL/CE Listed Electrical Panel
  • Special temperature uniformities
  • Hydraulic hoist systems for heavy loads
  • Age Ovens
  • Insulated quench tanks
  • Spare Parts
  • Field installation, installation supervision and commissioning
  • Work platforms/access ladders

Industries

  • Aerospace
  • Agriculture
  • Automotive
  • Aluminum Casting
  • Forging
  • Foundry
  • Military
  • Mining
  • Recreational Vehicles
