Drop Bottom Aluminum Heat Treat Furnace

Drop-bottom aluminum heat treat furnaces are used to solution heat treat aluminum alloys.  ITS Drop Bottom Furnaces are designed to operate with tight uniformities from 300°F to 1200°F for maximum flexibility to allow for aging and annealing. ITS specializes in large volume workspaces with standard lengths to 40’ and heavy loads with standard sizes to 20,000 lbs.

Aluminum solution heat treatment is the heating of an alloy to a suitable temperature, holding it at that temperature long enough to cause one or more constituents to enter into a solid solution and then cooling it rapidly enough to hold these constituents in solution. This is often followed by a precipitation-hardening process to increase the yield strength of the alloy.
Kurt, Sales Manager - FurnaceInternational Thermal Systems
Tight-tolerance Aluminum furnaces

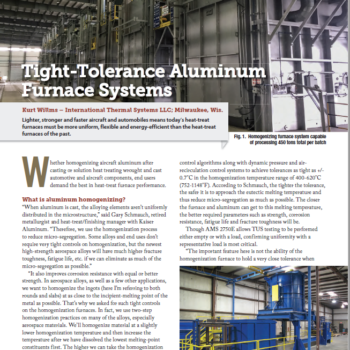

Tight Tolerance Aluminum Furnace Systems

Maintaining tight tolerances is critical for Aluminum Heat Treating applications.

Tight Tolerance Heat Treat Furnace

Overview

Drop Bottom Aluminum Heat Treat Furnaces with quench meet AMS, BAC, and client specifications.

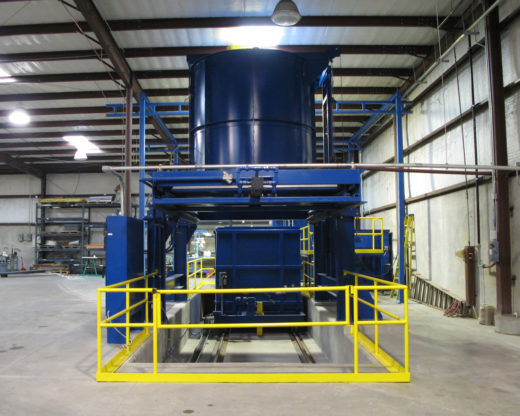

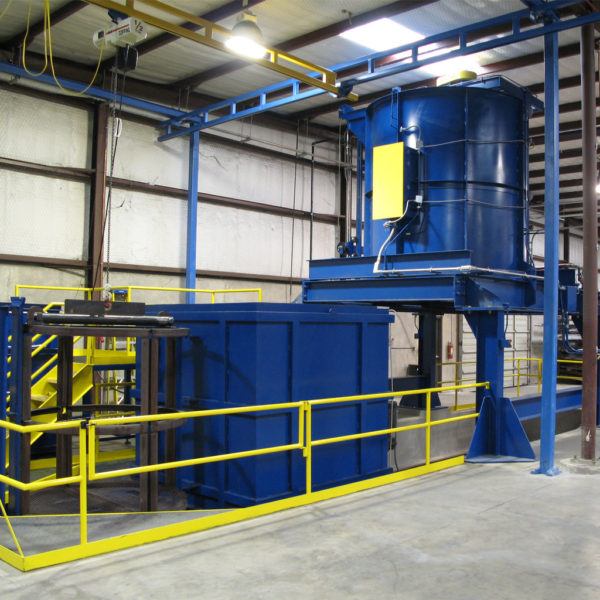

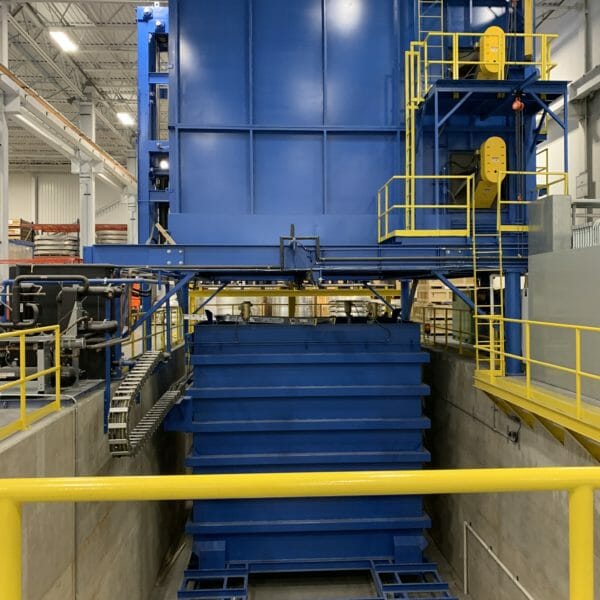

Drop-bottom aluminum heat treat furnaces are used to solution heat treat aluminum alloys. The furnaces are typically used when very fast water quench times are required. The furnaces are designed to meet all requirements of Aerospace Material Specifications (AMS) and Boeing Aircraft (BAC) specifications. The quenching solutions can include water, glycol, oil, or air. Because of the height of these systems, they are typically installed in a pit. The quench tank and load/unload station is typically mounted on a moveable cart underneath the furnace. Rinse stations for glycol quenching are available as well.

Lighter, stronger and faster, aircraft and automobiles means today’s heat-treat furnaces must be more uniform, flexible and energy-efficient to deliver required results for customers. Learn more about maintaining tight tolerances on the drop bottom aluminum furnaces.

Industrial Furnace | Clam Shell Furnace or Tip Up Furnace

Features

Solution Heat Treat Furnace Features include:

  • Economical operation is achieved with superior thermal process engineering practices that apply state-of-the-art insulation material, airflow management, and custom programming.
  • Recirculation fans with high efficiency motors to reduce energy consumption.
  • Recirculation ductwork designs provide precise airflow to specific areas of the product resulting in smaller foot print ovens thus reducing utility and factory space costs.
  • High-efficiency (gas or electric) heat sources to reduce energy costs.
  • Robust structural oven frames and component supports.
  • Application specific insulation materials are selected to provide optimum insulating characteristics and long term energy savings.
  • Design considerations for easy access to process areas and oven components.
  • Private labeled and purchased components meet UL, UR, and CE standards.
  • Programmable controllers with HMI (Human Machine Interface) displays allow for user friendly operation and machine diagnostics.
  • NEMA style control panels.
  • Factory tested to ensure on time delivery and field start up.
  • 24/7 factory direct technical service and spare parts group.
Industrial Furnace | Solution Heat Treat Furnace

Specifications

Construction Specifications

  • Heavy Duty Welded Steel exterior
  • Stainless Steel and various Metal Alloys for temperature and corrosion resistance
  • High-Density energy-saving insulation
  • Quench tank: Carbon steel or 304 Stainless Steel Plate
Industrial Furnace | Stress Relief Furnace

Options

Available Options

  • Inert atmosphere ovens and furnaces.
  • Can construction oven and furnace bodies.
  • Exhaust air to air heat recovery systems.
  • Thermal and regenerative oxidizers.
  • Industrial computers with Ethernet for remote diagnostic and communication capabilities.
  • UL or CE certified control panels or complete systems.
  • PE certifications to meet a variety of client or government specific requirements.
  • Advance thermal, vibratory, and dB testing with certification.
  • In-house laboratory featuring a custom test oven and other related thermal equipment.
  • Factory direct installation services.
  • Conduct an energy efficiency analysis on the existing thermal processing equipment.
  • Upgrade for all makes and models of thermal processing equipment to meet today’s process, energy, and government standards.

Each Solution Heat Treat Furnace is designed for the specific application and environment. The systems can be designed to meet all requirements of AMS 2750D and AMS 2770H as well as BAC specifications.

Temperature Ranges up to 1200°F (649°C)

Systems can be designed for +/-5°F depending on the customers’ requirements. The furnace can be designed to operate as low as 250°F to allow for Aging and Annealing as well.

Power Source Options

  • Main Power Supplies 208 to 690 Volt AC, 50 and 60 HZ
  • Control Voltage 24 Volt DC or 120/220 Volt AC

Heat Sources

  • Electric
  • Natural Gas

Material Handling Options

  • Powered or Manual Car
  • Vertical Cable Hoist System operated by Pneumatics or Hydraulics

Industries

Typical Heat Processing Application(s)

Solution Heat Treat of various alloys

Industry Applications

  • Aerospace
  • Agriculture
  • Automotive
  • Aluminum Casting
  • Forging
  • Foundry
  • Military
  • Mining
  • Recreational Vehicles
