Vacuum Transfer System

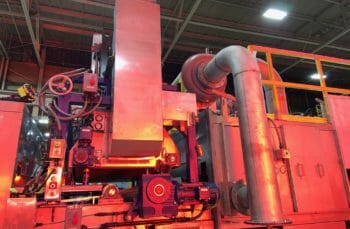

The vacuum transfer systems moves cans in mass from the can washer to the drying oven.

Overview

ITS is now offering a vacuum transfer system used to convey the cans in mass from the exit of the washer to the entrance of the dry-off oven.

Features

  • Rigid structural steel frame
  • Vacuum plenum constructed of stainless steel to resist corrosion
  • Conveyance via a plastic perforated flat top belt
  • Assembly driven by a direct drive gearmotor

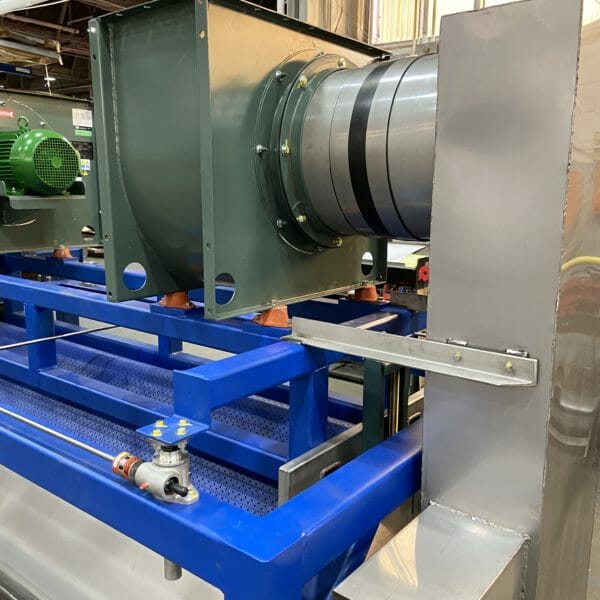

  • Vacuum will be created via two (2) independent vacuum fans in conjunction with barometric damper assemblies to ensure uniform vacuum is maintained regardless of can pack loading.
  • Frequency inverters for the vacuum fans for additional airflow adjustment and efficiency.
  • The entire vacuum plenum/conveyor assembly will be vertically adjustable to accommodate various can heights via a manually adjusted jack screw system.

Benefits

  • Even air flow
  • Easy to adjust for variable can heights
  • Handles multiple can speeds
  • Uniform suction side-to-side
  • User friendly

Options

  • The Vacuum Transfer System can be retrofitted on any can washer and drying oven.
  • ITS installation services are available

Industries

  • Aerosol
  • Food
  • Beverage
  • Pet Food
