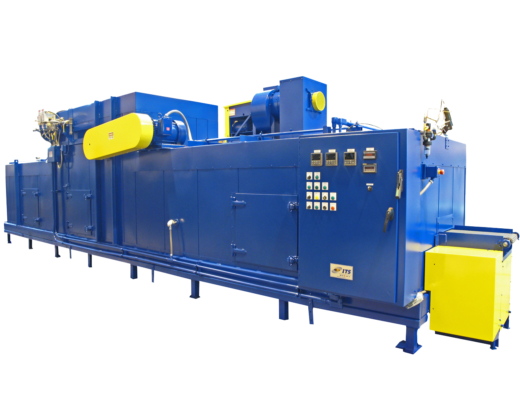

FlashMaidTM Plate Dryer

International Thermal Systems is the leader in manufacturing flash plate dryers. Designed to interface with all manufacturers pasters, The FlashMaid™ Self-Cleaning Plate Dryer is the only flash plate dryer on the market which automatically cleans lead dust from the inside of the oven. This feature means: less free lead in the air, less down time for maintenance, enhanced temperature uniformity on the parts and less wasted energy through heat absorption and restricted air flow because of trapped dust inside the dryer ductwork.

International Thermal Systems plate dryers are recognized in the battery industry as the leader in reliability and innovative design.

FlashMaid™ Self Cleaning Flash Dryer Video

ITS is the only manufacturer on the market that designs and sells self cleaning flash dryers with components specifically engineered to help our customers give their employees a cleaner and safer place to work.

Overview

The FlashMaid™ Plate Flash Dryer is designed to reduce free lead in the air and automatically clean lead dust from inside the oven. This unique technology is the only equipment in the market that will maximize production efficiencies and minimize energy consumption.

The FlashMaid™ Plate Flash Dryer will automatically remove lead oxide dust particles from the lower ductwork and deposit them into a removable tray. The self-cleaning feature means less downtime for maintenance and end stands incorporate integrated baghouse connections. Lead oxide dust particle buildup can waste energy absorbing heat and restrict airflow. With lead dust particles automatically removed, the FlashMaid™ Plate Flash Dryer operates more efficiently than its competitors.

International Thermal Systems offers four (4) standard models:

The FlashMaid™ Plate Flash Dryer Model 18 will accommodate low volume automotive battery plate applications. The system provides up to 18ft (5.49m) of heated length. The unit fits into a 20ft (6.1m) standard sea container for economical shipment worldwide. An upgrade on this model includes belt widths ranging from 12in to 16in (304.8mm to 406.4mm).

The FlashMaid™ Plate Flash Dryer Model 22 Automotive will accommodate medium to large volume automotive plate applications. The system provides up to 22ft (6.71m) of heated length. The unit fits into a 40ft (12.2m) standard sea container for economical shipment worldwide. An upgrade on this model includes belt widths ranging from 12in to 16in (304.8mm to 406.4mm).

The FlashMaid™ Plate Flash Dryer Model 250 Automotive will accommodate large volume automotive battery plate applications. The system provides up to 31ft (9.45m) of heated length. The unit fits into a 40ft (12.2m) standard sea container for economical shipment worldwide. An upgrade on this model includes belt widths ranging from 12in to 16in (304.8mm to 406.4mm).

The FlashMaid™ Plate Flash Dryer Model 22 Industrial will accommodate Industrial battery plate applications. The system provides up to 22ft (6.71m) of heated length. The unit fits into a 40ft (12.2m) standard sea container for economical shipment worldwide. An upgrade on this model includes belt widths from 24in to 30in (609.6mm to 762mm).

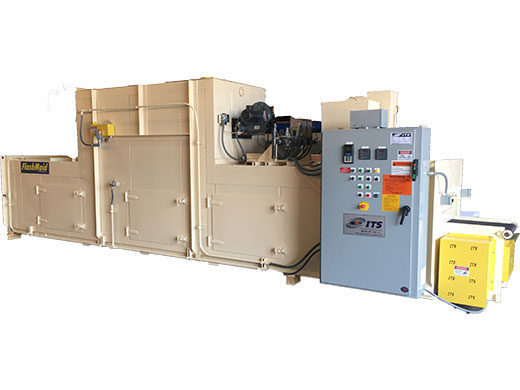

FlashMaid Plate Dryer from ITS

Features

  • Only self-cleaning plate dryer in the market
  • Minimizes free lead in air
  • Designed to interface with all manufactures pasters
  • Belt returns inside the oven, minimizing heat loss
  • Vented end stands with bag house connection on both ends
Plate Dryer from ITS

Specifications

  • NFPA compliant
  • Heavy industrial construction
  • Heater box with removable roof section, for ease of maintenance
  • ½” x ½” true High Carbon steel flat wire mesh belt conveyor
  • Prewired Nema-12 control panel
  • The removable roof section above the heater box provides easy access to oven components.
Battery Plate Dryer

Options

  • An optional PLC control with Ethernet communication and CE certification is available.
  • Stainless steel belts
  • The Plate Flash Dryer will carry an 12-month extended manufacturer’s warranty from the date of shipment.
  • We deliver the FlashMaid™ Plate Flash Dryer to facilities worldwide.

Industries

  • Automotive
  • Marine
  • Locomotive
  • Truck
  • Military
  • Aerospace
  • Golf Cart
  • Wheel Chair

Downloads

FlashMaid™ Plate Flash Dryer
Product Brochure

Download FlashMaidTM Plate Dryer Brochure

International Thermal Systems Equipment Overview

ITS Company Brochure

Contact the ITS Battery Group

We are ready to assist with application recommendations and product proposals.
