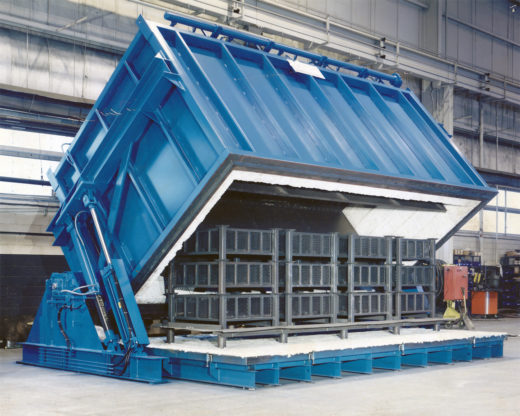

A Clam Shell Furnace, also known as a Tip Up Furnace, features a pivoting furnace body to allow overhead crane loading and unloading of the parts. Clam Shell Furnaces are utilized for heat-treating, calcining, curing, annealing, stress relieving, preheating, tempering, and other high temperature thermal processes.

Overview

Clam Shell Furnaces are an excellent choice for an extremely heavy load.

A Clam Shell Furnace, also known as a Tip Up Furnace, features a pivoting furnace body to allow overhead crane loading and unloading of the parts. High temperature clam shell furnaces are utilized for heat-treating, calcining, curing, annealing, stress relieving, preheating, tempering, and other high temperature thermal processes. Multiple zone heating technology can be integrated to maintain exceptional part temperature uniformity, and achieve ramp/soak heating and cooling profiles.

Materials processed include aluminum, steel, cast iron, high nickel alloys, titanium and others.

The ITS Clam Shell Tip-Up Furnace has many established design features such as heavy duty hydraulic lift systems, energy efficient insulation, fully proportional gas and electric heat, lightweight heavy duty piers and state-of-the art control packages.

Optional inert gas and high volume recirculation systems makes these versatile furnaces a great option.

Industrial Furnace | Clam Shell Furnace or Tip Up Furnace
Industrial Furnace | Clam Shell Furnace or Tip Up Furnace

Features

  • Minimizes floor space usage
  • Gas (direct and indirect) and electric versions
  • Heavy plate construction
  • Designed for overhead or front loading
  • Accepts heavy loads
  • Energy efficient ceramic fiber insulation
  • NEMA 12 Control Panel (machine-mounted)
  • Hydraulic lift system
  • Single button E-stop on control panel
  • Burner safety equipment
  • Furnace chamber and hi-limit microprocessor based temperature controllers
  • Electric version SCR controlled
  • Low mass pier system with optional hearth
  • Excellent temperature uniformity
Industrial Furnace | Box Furnace

Specifications

  • Plate Steel shell and heavy structural frame
  • Cast Hearth and Piers or Ceramic Fiber with Alloy Piers
  • Stainless Steel and various Metal Alloys for temperature and corrosion resistance
  • High-Density energy-saving insulation

Temperature Ranges up to 3300°F

Power Source Options

  • Main Power Supplies 208 to 690 Volt AC, 50 and 60 HZ
  • Control Voltage 24 Volt DC or 120/220 Volt AC

Heat Sources

  • Electric
  • LPG
  • Natural Gas
  • Fuel Oil
  • Other Fuel Mixtures

Material Handling

Fixed Hearth

Car Bottom Furnace - Industrial Furnace

Options

Industries

Typical Heat Processing Application(s)

  • Annealing
  • Machined Components
  • Welded or Formed Assemblies
  • Stress Relieving

Industry Applications

  • Aerospace
  • Agriculture
  • Aluminum Casting
  • Automotive
  • Forging
  • Foundry
  • Military
  • Mining
  • Recreational Vehicles
Aerospace industry

Downloads

Clam Shell Furnace Brochure

Download Clam Shell Furnace Brochure

International Thermal Systems Overview

ITS Company Brochure

Contact the ITS Furnace Group

We are ready to assist with application recommendations and product proposals.
